ClubLamps® F9 Series – High-Speed RGB ILDA Laser for Professional Stage Lighting
Product Highlights
Precision Full-Color RGB Output: Delivers vibrant, razor-sharp colors specifically calibrated for high-impact visuals in small to medium-scale venues.
High-Speed 20Kpps Scanning System: Engineered with precision scanners to ensure fluid graphics, sharp beam projections, and flicker-free 3D animations.
Dynamic Immersive Spectrum: Features a rich RGB color mixing system that creates deeply immersive lighting effects, perfect for captivating professional audiences.
Industrial-Grade Durability: Housed in a sturdy, aircraft-grade aluminum chassis designed for long-lasting performance and effortless transport in touring rigs.
Intelligent Active Cooling: Built-in high-efficiency thermal management ensures reliable diode performance during extended operation in demanding club and stage environments.
Universal Professional Compatibility: Fully compatible with industry-standard RJ45 ILDA interfaces and native DMX512 control for seamless system integration.
Scalable Multi-Projector Connectivity: Designed for rapid, synchronized setups. Easily link multiple units to create massive, coordinated stage lighting arrays with minimal effort.
Technical Specifications

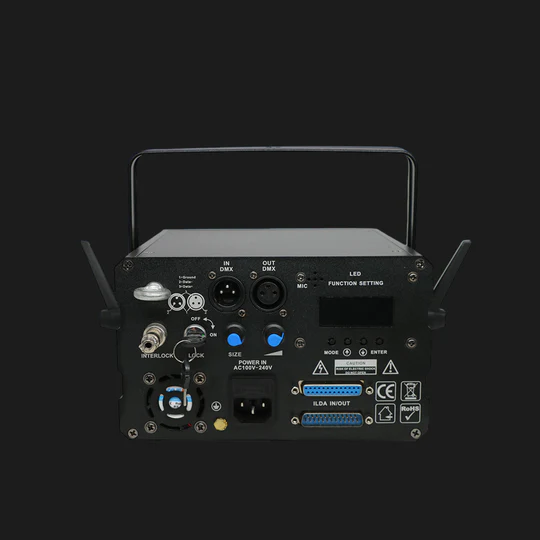

Control Interface: ILDA (RJ45), DMX512, Sound Activated, Auto-Run, Master-Slave
Scanner Speed: Professional 20KPPS (High-Speed)
Modulation: Analog/TTL for smooth color transitions
Housing Material: High-Strength Aluminum Alloy
Ideal For: DJs, Nightclubs, Corporate Events, and Professional Stage Lighting Installations
ClubLamps® F9 Series – 3W-5W RGB Animation Laser for Professional Stage Lighting
Model Specifications Matrix
Item No.
Red Laser
Green Laser
Blue Laser
Scanning
F9-901A
R300mw/638nm
G80mw/520nm
B800mw/450nm
20kpps
F9-902A
R500mw/638nm
G500mw/520nm
B1000mw/450nm
20kpps
F9-903A
R600mw/638nm
G800mw/520nm
B1600mw/450nm
20kpps
F9-904A
R1000mw/638nm
G1000mw/520nm
B2000mw/450nm
20kpps
F9-905A
R1200mw/638nm
G1400mw/520nm
B2500mw/450nm
20kpps
Product Description
The ClubLamps® F9 series is a high-performance RGB animation laser system designed for medium to large-scale stage lighting environments. With power outputs ranging from 3W to nearly 5W of total RGB energy, this series delivers unmatched brightness and vivid color projection for nightclubs, concerts, and festivals. Built for professionals, the F9 features high-speed 20kpps scanners and full ILDA compatibility, enabling the projection of complex 3D animations, custom logos, and crisp text with flawless precision.
The system is equipped with an extensive library of pre-programmed effects, including animated tunnels, spirals, and geometric shapes, which can be activated instantly via sound-to-light or auto-run modes. For advanced users, the ILDA interface provides endless creative freedom to craft bespoke laser shows and professional branding. Its industrial-grade, compact design ensures it can be seamlessly integrated into any truss setup, while its multi-unit linking capability allows you to scale your visual effects to fit any venue size.
Key Technical Features
Impactful High-Power Output: Sharp RGB laser beams designed for high visibility in large event spaces and professional stage lighting rigs.
Precision Animation Scanning: 20kpps high-speed galvanometer system for flicker-free cartoons, graphics, and intricate beam effects.
ILDA & DMX Control: Full support for industry-standard PC control software and professional lighting consoles.
Plug-and-Play Show Programs: Built-in spectacular displays for instant impact, perfect for fast-paced DJ sets and clubs.
Scalable Performance: Designed for multi-projector connectivity, allowing for synchronized displays across multiple units.
Industrial Cooling: Efficient heat management for stable performance during long-duration nightclub and festival operations.
